性能特點Features
A)可供高溫場所使用
B)可清洗
C)初始阻力低
D)結構結實
E)聚塵率高,使用壽命長
F)結構輕巧,易于安裝
Features:
A) High acid and alkali resistance
B) Washable
C) Low initial resistance
D) Firm structure
E)High dust holding capacity and long service life
F)Lightweight and easy to install

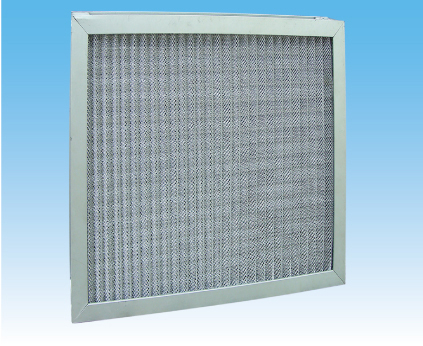

Frame:aluminum alloy frame.
Media:eAluminum
or stainless steel net,asy to install and maintain, High absorb
capacity ,nice performance ,low operation Cost,low
resistance,washable-reusable aluminum net,long life span.
Efficiency:(EN779:2002 filter class)G3,G4,F5
(ASHRAE 52.2:2007 filter class)MERV7,MERV8,MERV9.
Recommended final pressure drop:250Pa.
外框:可拆卸鋁型材。
濾料: 采用多層波浪形擴張鋁網或不銹鋼網彼此交叉疊合排列而成,多層金屬網是以不同的密度,不同孔徑排列,使空氣通過濾網時多次改變流動方向,增大其捕塵能力及效率。阻力低使用壽命長,可反復清洗,經濟性高。
效率:(EN779:2002)G3,G4
(ASHRAE 52.2:2007)MERV6,MERV7。
建議終壓損:250Pa.
應用 Applications
一般建筑大樓空調之粗塵過濾系統
工業級空氣通風設備之初級過濾
要求耐酸堿,強度高,耐高溫的通風系統
汽車總裝車間的噴蠟房過濾
Building air conditioning primary filtration system
The primary filter of industrial-grade ventilation systems
widely used in industry,M-NET is the most economical ventilation and direct ways
widely used in acid,alkali and high humidity environment
常用規格 Common Specifications
型號 Model | 外形尺寸Dimensions | 額定風速 Face Velocity (m/s) | 額定風量 Rated Air Flow (m3/h) | 初期壓損 Initial Pressure Drop (Pa) |
W×L×D (mm) | ||||
SMW-20×10×2 | 492×238×46 | 2.5 | 1050 | 15 |
SMW-20×16×2 | 492×390×46 | 1720 | ||
SMW-20×20×2 | 492×492×46 | 2170 | ||
SMW-24×24×2 | 594×594×46 | 3170 | ||
SMW-25×16×2 | 619×390×46 | 2170 | ||
SMW-25×20×2 | 619×492×46 | 2740 |
Model | Dimensions | Face Velocity (m/s) | Rated Air Flow (m3/h) |
Initial Pressure Drop (Pa) |
W×L×D (mm) | ||||
SMW-20×10×2 | 492×238×46 | 2.5 | 1050 | 15 |
SMW-20×16×2 | 492×390×46 | 1720 | ||
SMW-20×20×2 | 492×492×46 | 2170 | ||
SMW-24×24×2 | 594×594×46 | 3170 | ||
SMW-25×16×2 | 619×390×46 | 2170 | ||
SMW-25×20×2 | 619×492×46 | 2740 |
1、若遇規格、結構變更,以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
