性能特點Features
外框：可整卷或裁片供應，亦可加裝鍍鋅框或鋁合金框。
濾料：采用內外熔點高低不同的復合纖維制成 ，纖維之間結構牢固，結合緊密，不易脫落。濾棉有全粘性，半粘性，無粘性可供選擇。
效率：（EN779:2002 filter class）G3,G4,F5
（ASHRAE 52.2:2007 filter class）MERV6,MERV7,MERV10.
使用溫度：常溫。
◆濾料按纖維粗細及密度不同，以非織物方式、多向性、漸層性，軋針法制成
◆漸密式結構可根據塵埃顆粒大小，被阻擋在不同密度的層次，容塵量大
◆一定風速下仍能保持原來形狀，增長濾網的壽命，降低更換成本
◆采用內外熔點高低不同的復合纖維制成，纖維之間接點牢固、結合緊密，不易脫落
◆濾棉有全粘性（立體噴膠處理）、半粘性（表面噴膠處理）、無粘性（無膠）可供選擇
◆可加裝鍍鋅鋼板框或鋁合金框，亦可加裝金屬背網，可有效支撐濾網承受大風量不易變形
Frame:Supply of the entire volume Or plus galvanized border or aluminum alloy frame.
Media:Using different melting point of exterior and interior of the composite fiber,thick and thin fibers was fused together by hot-melt fibers, Combined with close,is not easy to fall off. There are full-viscous, half viscous, non-viscous to choose from.
Efficiency:(EN779:2002 filter class)G3,G4,F5
(ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.
◆Using chemical synthetic fibers, in accordance with different diameter
and density of them, make into a conformation of the increase in density
by non-woven process
◆The structure of gradually increase the density of fibers can block
particles of various sizes at the levels of different density. It has
a large capacity of dust quantity
◆Under higher air velocity the separator will still maintain the
original shape. It has advantages of low cost and long service life
◆Using different melting point of exterior and interior of the fiber,
thick and thin fibers was fused together by hot-melt fibers
◆There are full-viscous (spraying glue with three-dimensional treatment),
semi-viscous (spraying glue with surface treatment) and non-viscous
(no glue) filter to choose from
◆Can be with galvanized steel or aluminum alloy frame and also
expanded metal on the exhaust side, to effectively prevent deformation
of the separator under high-speed airflow
應用Applications

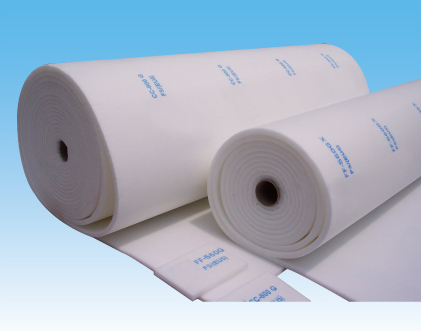

特別為噴漆系統和噴漆車間的后過濾工序而設計的頂棚過濾棉
適用于通風系統及設備的精細過濾
The ceiling filter is especially designed for the final intake air filtration in paint-spray systems and booths
The mats are also suitable in any kind of fine filtration of ventilation systems and units
◆用于涂裝工廠、噴漆房、烤漆房頂部送風系統，收集細小塵埃微粒，防止油漆污染，保證房內空氣高度潔凈，使烤漆房內氣流分布均勻
◆Suitable for the air supply system at top of the spraying-baking booth
in painting factory to safeguard a high degree of cleanliness and
air-distribution uniformity. Trapping small dust particles and preventing
pollution of paint.
常用規格 Common Specifications
過濾級別EN779 Filter class to EN779 | F6（EU6） | F5（EU5) | |||
SZFIL | Type Units | SAR-660 | SAR-350 | STC550 | STC600 |
平均效率 Average efficiency | % | 63 | 56 | 54 | 57 |
額定風量 Nominal air volume | m3/h | 900 | 1800 | 900 | 900 |
初期壓損 Initial pressure drop | Pa | 25 | 35 | 25 | 25 |
推薦終期壓損 Recommend.final pressure drop | Pa | 450 | 450 | 450 | 450 |
容塵量 Dust holding capacity | g | 369 | 260 | 329 | 330 |
厚度 Thickness | mm | 25 | 20 | 25 | 25 |
重量 Weight | g/m2 | 550 | 500 | 500 | 600 |
卷 Rolls | L*W m | 2×20,1.6×20 | 2×20,1.6×20 | 2×20,1.6×20 | 2×20,1.6×20 |
F6（EU6） | F5（EU5) | ||||
SZFIL | Type Units | SAR-660 | SAR-350 | STC550 | STC600 |
Average efficiency | % | 63 | 56 | 54 | 57 |
Nominal air volume | m3/h | 900 | 1800 | 900 | 900 |
Initial pressure drop | Pa | 25 | 35 | 25 | 25 |
Recommend.final pressure drop | Pa | 450 | 450 | 450 | 450 |
Dust holding capacity | g | 369 | 260 | 329 | 330 |
Thickness | mm | 25 | 20 | 25 | 25 |
Weight | g/m2 | 550 | 500 | 500 | 600 |
Rolls | L*W m | 2×20,1.6×20 | 2×20,1.6×20 | 2×20,1.6×20 | 2×20,1.6×20 |
1、若遇規格、結構變更，以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
